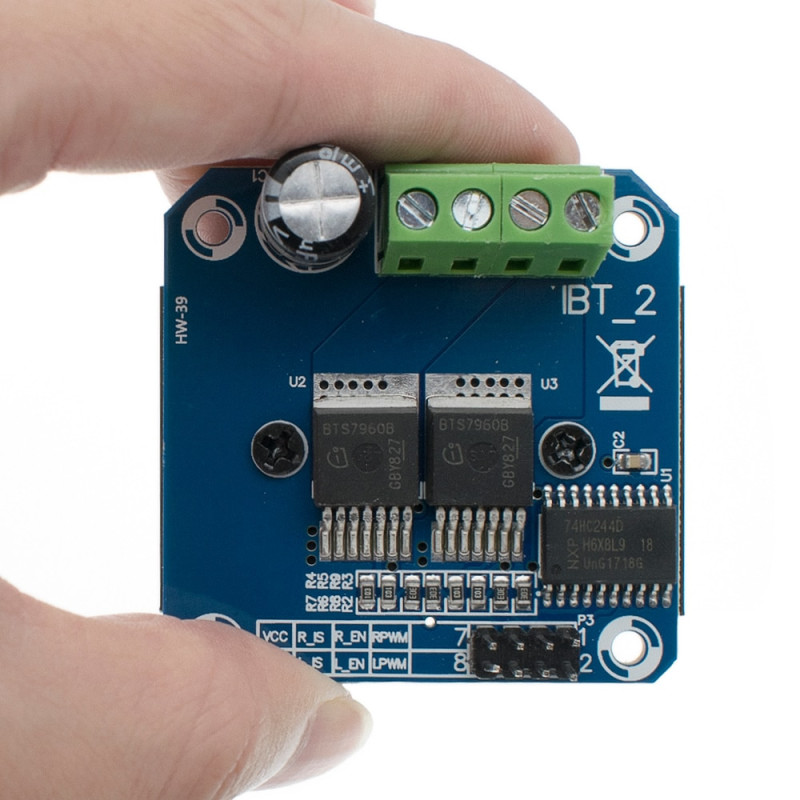

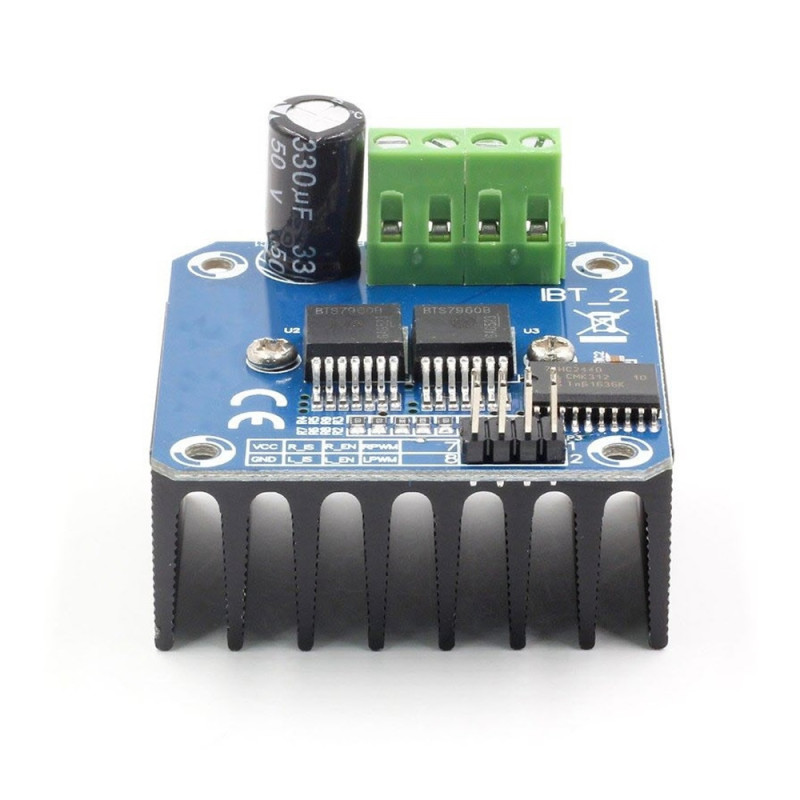

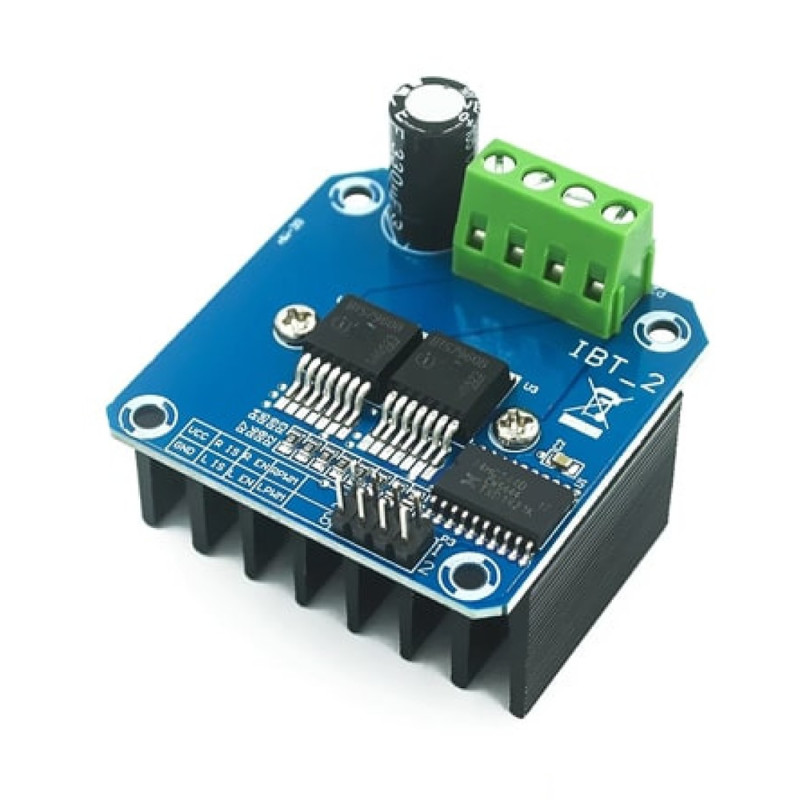

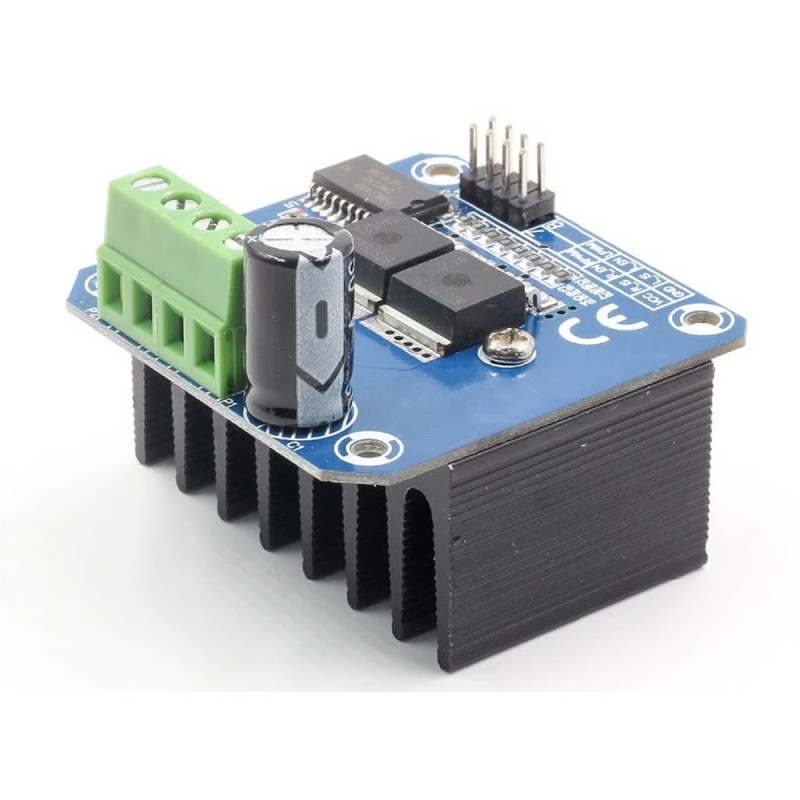

BTS7960B H-bridge 43A High-Power Motor Driver Module



     This driver uses Infineon BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A

     The BTS 7960 is a fully integrated high current half bridge for motor drive applications. It is part of the NovalithICTM family containing one p-channel highside MOSFET and one n-channel lowside MOSFET with an integrated driver IC in one package. Due to the p-channel highside switch the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is
made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, overvoltage, undervoltage,
overcurrent and short circuit



Features:

  •      Double BTS7960 large current (43 A) H bridge driver
  •      The supply voltage 5.5V to 27V
  •      Current limitation level of 43 A typ.
  •      5V isolate with MCU, and effectively protect MCU
  •      5V power indicator on board
  •      Voltage indication of motor driver output end

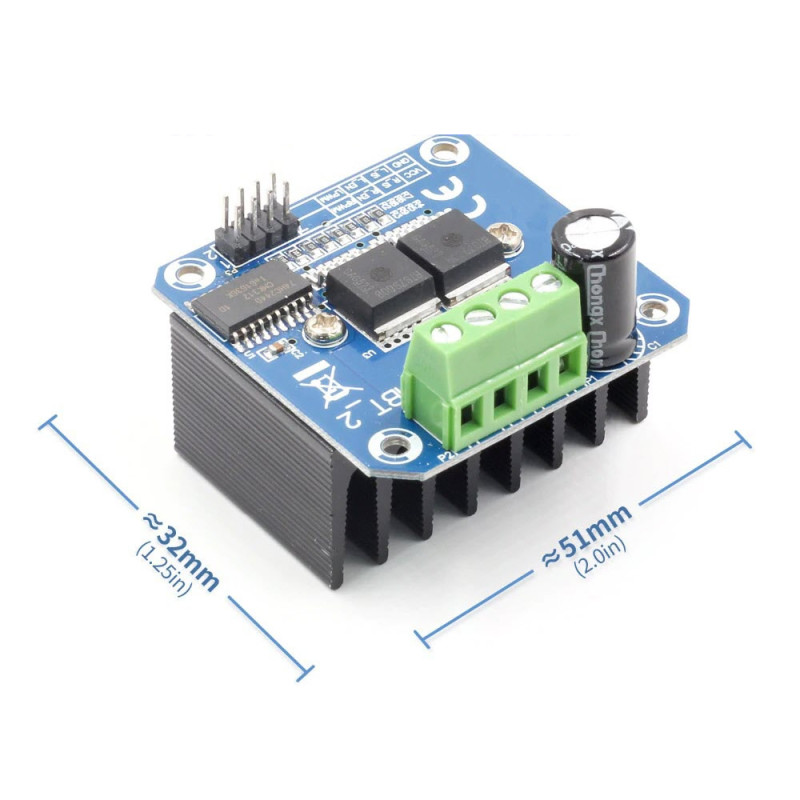

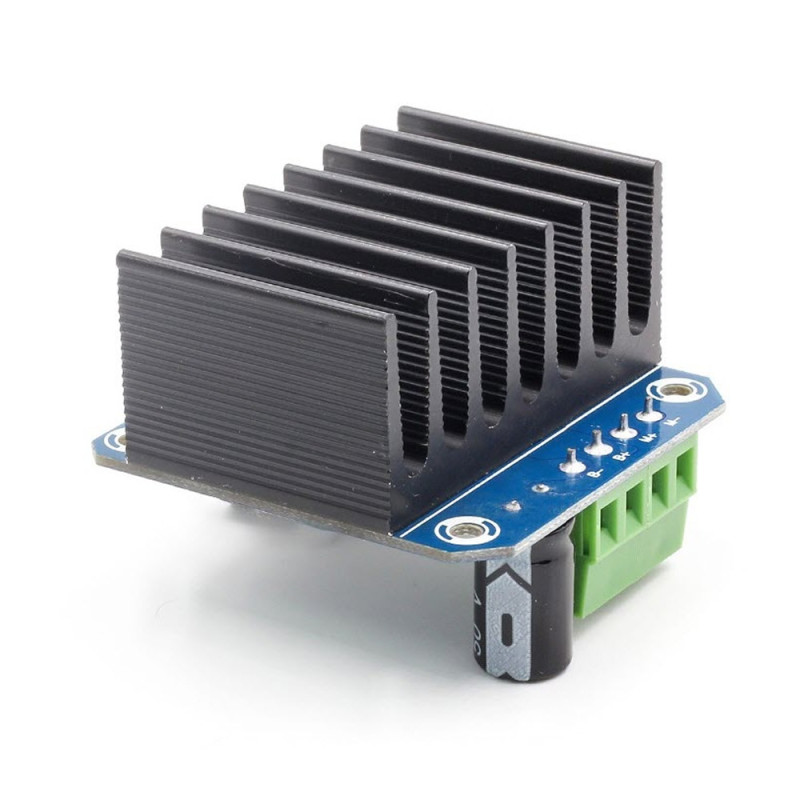

  •      Can solder heat sink

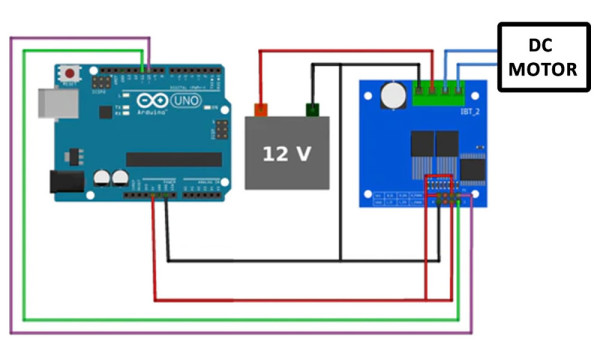

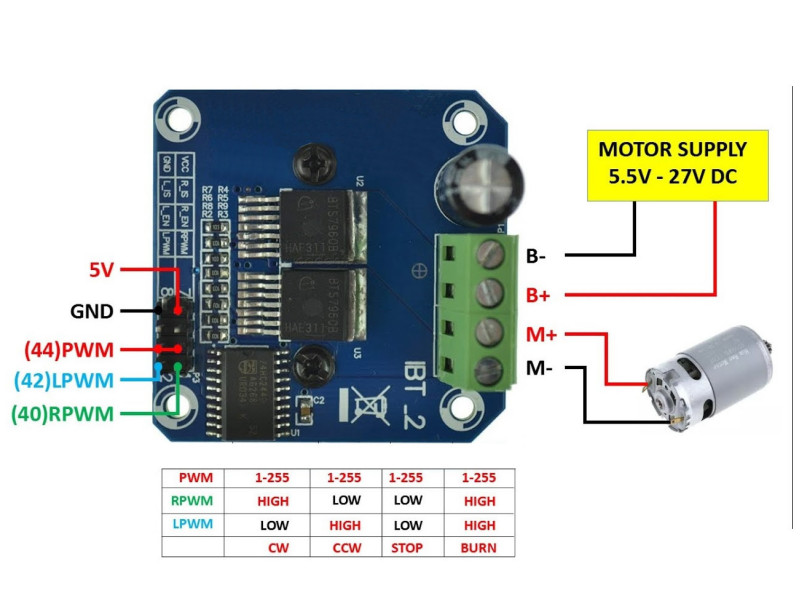

  •      Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2)
  •      Able to reverse the motor forward, two PWM input
  •      PWM capability of up to 25 kHz combined with active freewheeling
  •      Switched mode current limitation for reduced power dissipation in overcurrent
  •      Isolation chip 5 V power supply (can share with MCU 5 V)
  •      Can also use the on-board 5V supply;
  •      Two heat flow passing through an error signal output
  •      Overtemperature shut down with latch behaviour
  •      Overvoltage lock out
  •      Undervoltage shut down

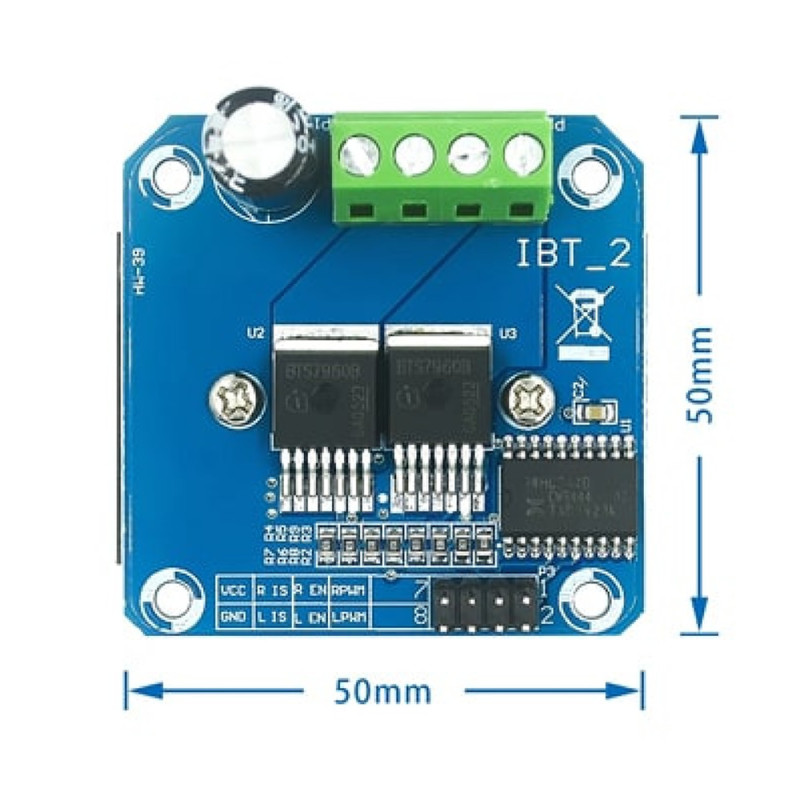

  •      Size: 4 x 5 x 1.2 cm




Package:

  •     1 x BTS7960B H-bridge 43A High-Power Motor Driver Module
