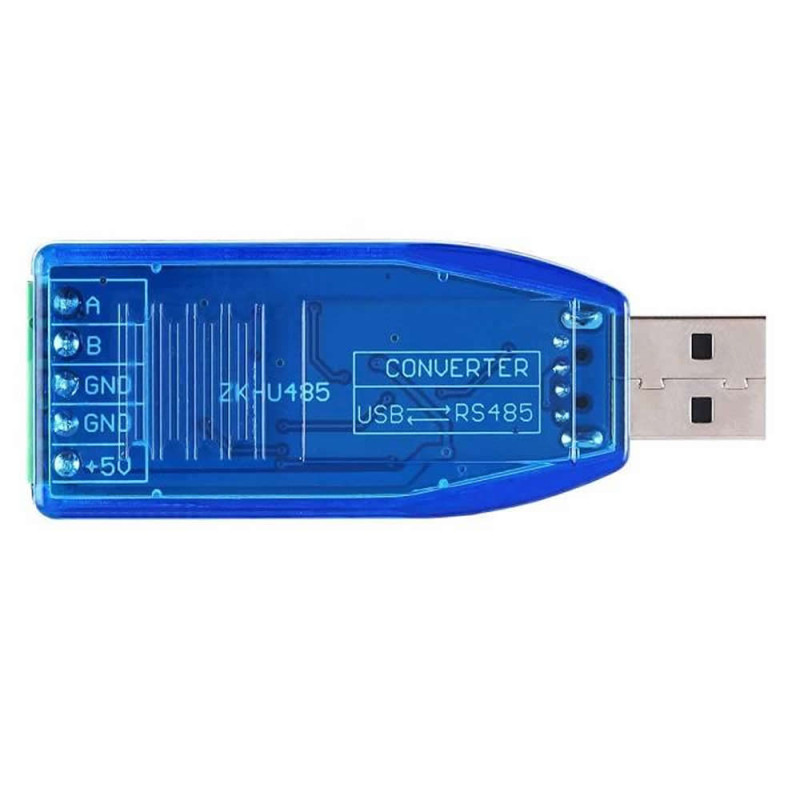

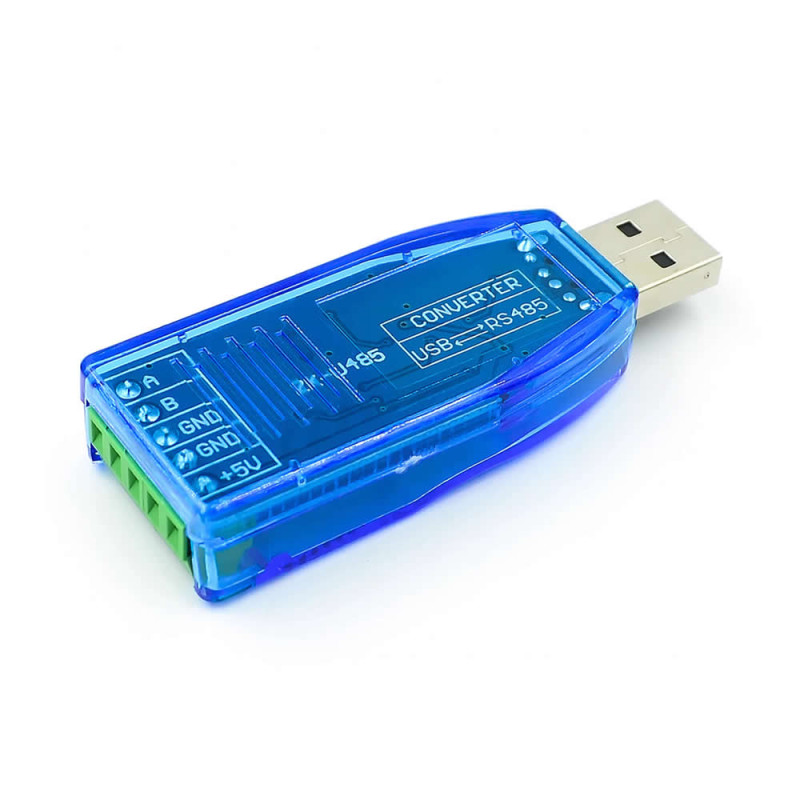

New Product USB to RS485 Modül Korumalı

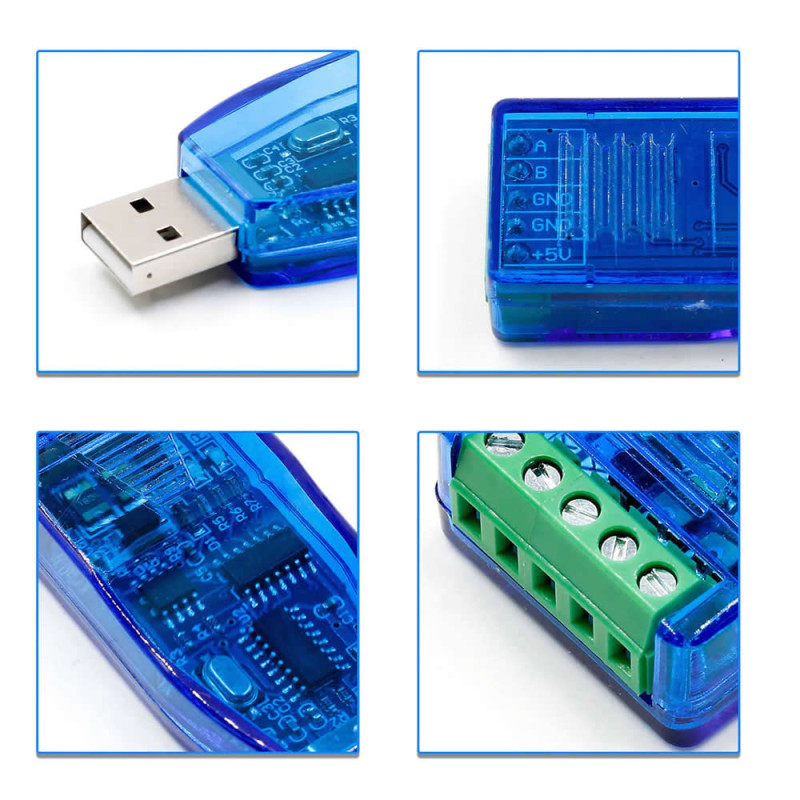

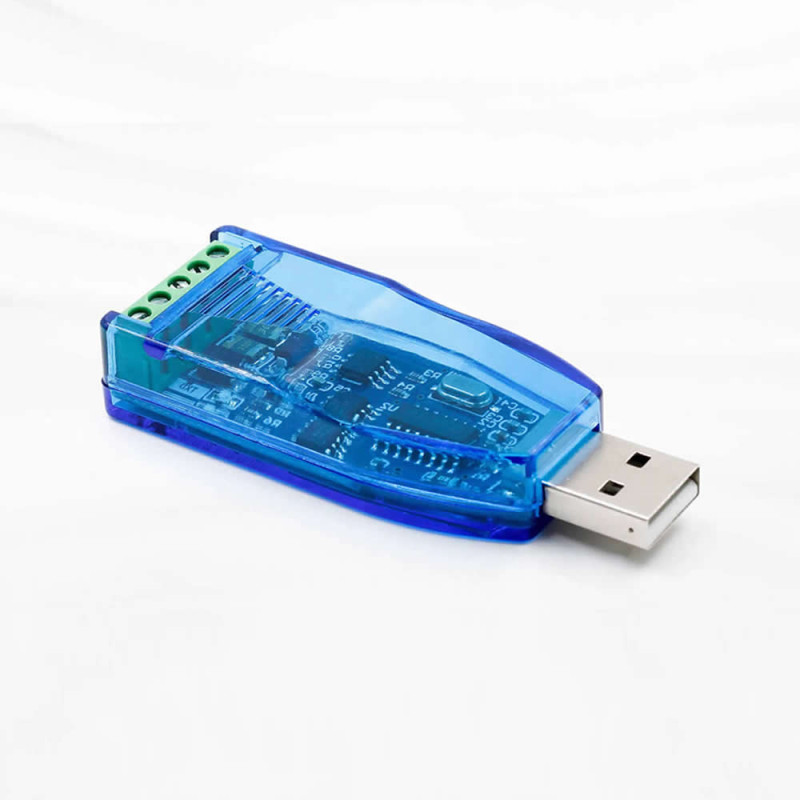

USB to RS485 Modül - Korumalı - AFC

Industrial grade, usb to rs485 communication module converter, TVS, AFC

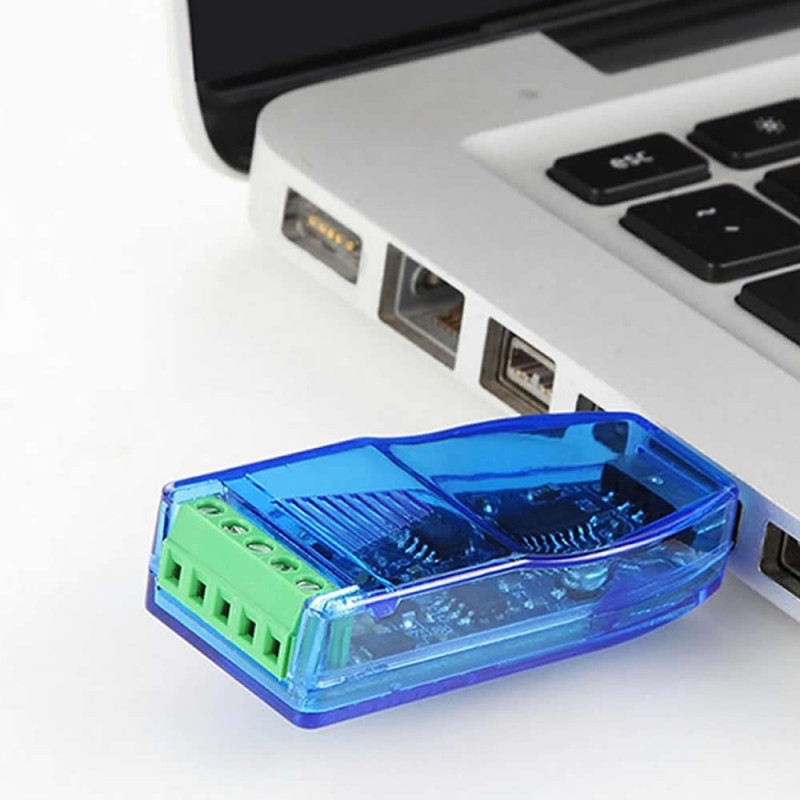

      USB To RS485 converter allows PC users to connect their RS-485 devices to systems that use USB interface. By attaching the converter to a PC, it will no longer be necessary to open the chassis or turn off the PC to install the hub. With the converter, the user instantly gets one extra high-speed RS-485 ports. In addition, since the power is derived from the USB port, there are not any cumbersome power adapters. This makes the converter especially suitable for PLCs, printers, POS system and industrial control devices.

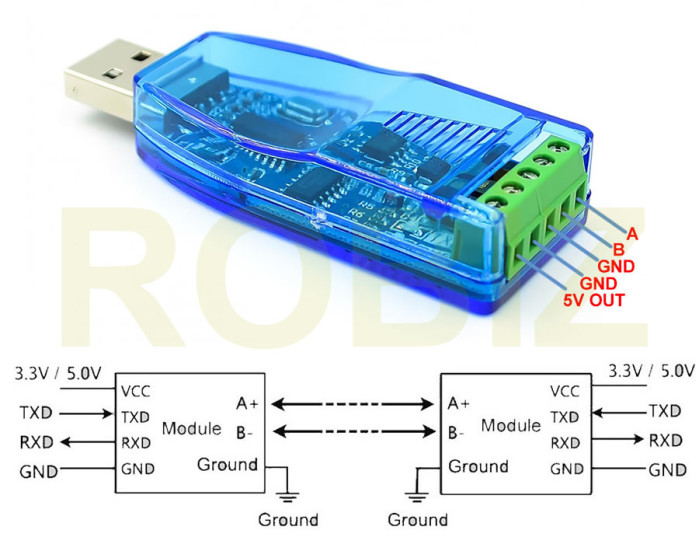

     Industrial protection: TVS transient suppression protection, electrostatic ESD protection, surge protection, short circuit connection of A and B signal lines and short circuit protection with power supply (short connection without burning)

     Transmission distance up to 1200 meters (tested at 9600bps)

     Automatically identify and control the data transmission direction without any handshake signals (such as RTS, DTR, etc.). The mode conversion can be realized without jumper settings, ensuring compliance with existing communication software and interface hardware.

     With TXD, RXD indicator.

     Support system: support hot swap, support  win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/LINUX/MAC OS X system, USB interface can be hot swap.



Specifications

  • Compatibility: USB v2.0 standard
  • Interface: Network: USB ( CH341 )
  • Series: RS-485
  • Port: an independent RS-485
  • Connector: Network: USB type A connector
  • Series: screw terminal
  • Transmission speed: 600bps to 115.2Kbps
  • Parity bit: odd, even, none
  • Data bit: 5, 6, 7, 8
  • Stop drill: 1, 1,5, 2
  • Driver support: Windows 2000/2003 / XP / Vista / 7 (32 bits and 64bit)
  • Power supply: USB 5V
  • Power consumption: 1.5 W at 5 V
  • Provide 5V power supply externally, with fuse current limit
  • Maximum distance: 1200 feet (19.2 m) @ Kbps
  • Case: ABS transparent blue
  • Operating temperature: -20 ~ + 65 ° C
  • Operating humidity: 20% to 95% (without condensation)
  • Weight: 16g

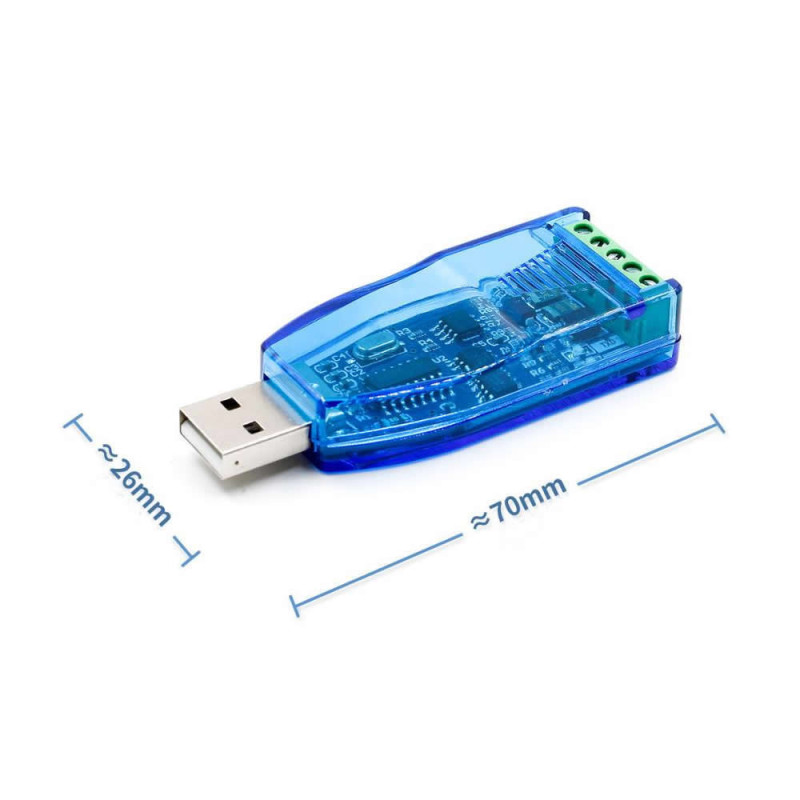

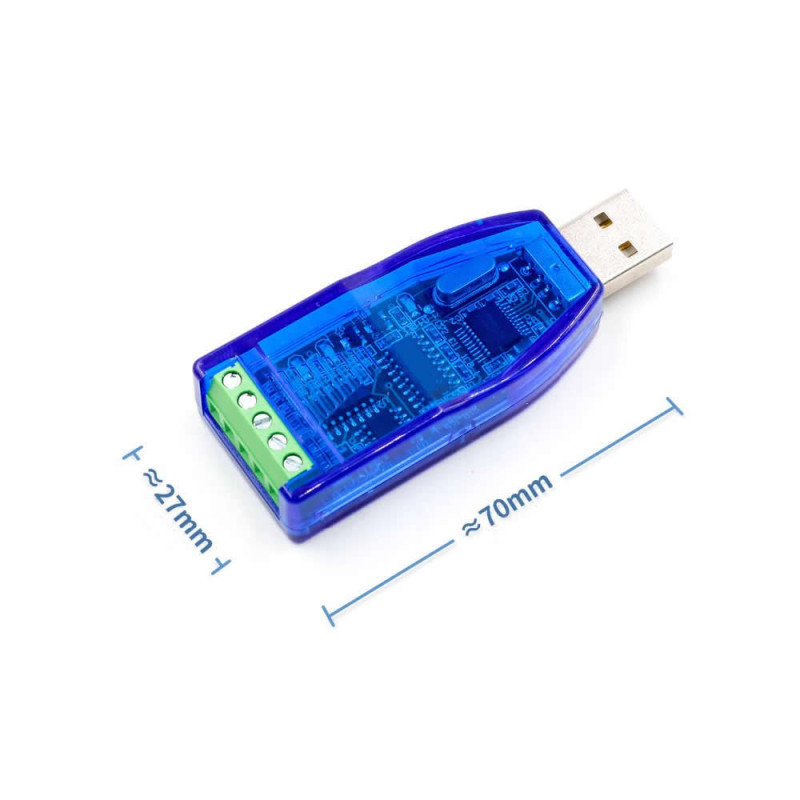

  • Size: length, width and height 70*27*13mm



Paket İçeriği :

  • 1 Adet USB to RS485 Modül Korumalı

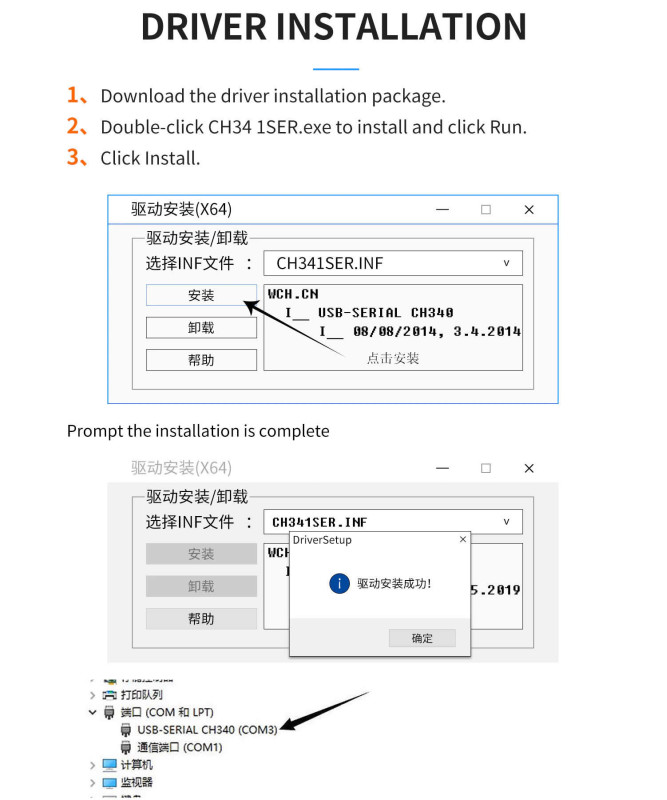

Sürücü :

CH341SER.EXE dosyası indirilip kurulum yapılmalıdır.

http://www.wch.cn/products/CH341.html
