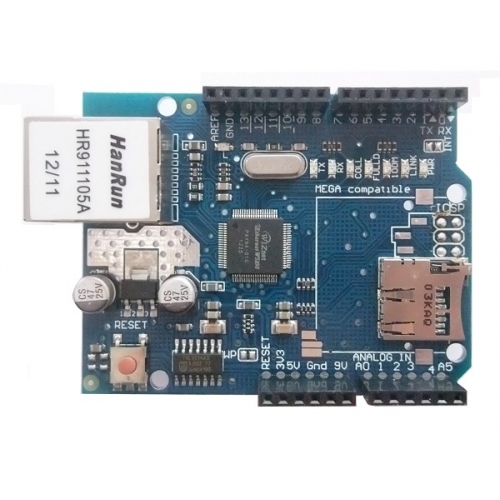

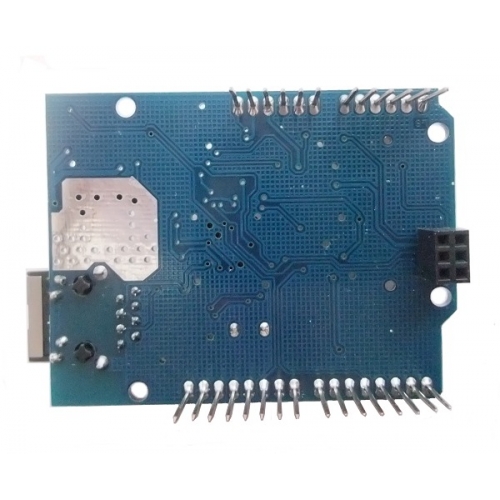

Arduino W5100 Ethernet Shield



Arduino Ethernet Shield Wiznet W5100

Feature:

  • It is directly supported by Arduino official Ethernet Library.
  • It adds a micro-SD card slot, which can be used to store files for serving over the network.
  • It is compatible with the Arduino Duemilanove (168 or 328), UNO as well as Mega (1280/2560) and can be accessed using the SD library.
  • The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.
  • It supports up to four simultaneous socket connections.
  • Use the Ethernet library to write sketches which connect to the internet using the shield.



Specification:

  • Controller: w5100
  • Size: 7.4 x 5.4 x 2.4  (2.91 x 2.12 x 0.94inch)
  • MAC address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED }


Documents : The following links refer to the official Arduino Ethernet shield, but are just as applicable to this shield

http://arduino.cc/en/Guide/ArduinoEthernetShield

http://www.hobbytronics.co.uk/datasheets/W5100_Datasheet_v1_1_6.pdf

http://arduino.cc/en/Main/ArduinoEthernetShield





Write a review

Please login or register to review

Arduino W5100 Ethernet Shield

  • Brand: OEM
  • Product Code: W5100 Ethernet Shield
  • Availability: In Stock
  • Fiyat : 30.00TL
  • KDV Dahil : 35.40TL

Tags: Arduino, Ethernet Shield, Wiznet, W5100
