New Product 1602A 16x2 Karakter LCD Yeşil



1602A 16x2 Karakter LCD Yeşil



Specification:

Gross Weight (kg) 0.0360
Manufacturer EastRising
Part Number ERM1602SBS-6
Display Format 16x2 Character
Interface 6800 4-bit Parallel , 6800 8-bit Parallel
IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
Appearance Black on Yellow Green
Diagonal Size No
Connection Pin Header

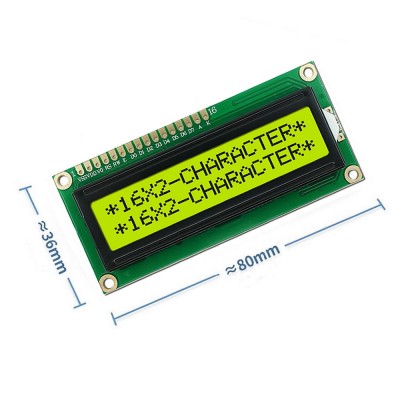

Outline Dimension 80.0(W)x36.0(H)x11.5(T)mm
Visual Area 64.50x14.50mm
Active Area 55.45x10.85mm
Character Size 2.95x5.15mm
Dot (Pixel) Size 0.55x0.50mm
Dot (Pixel) Pitch 0.60x0.55mm
IC Package COB
Display Type STN-LCD Blue
Touch Panel Optional No
Sunlight Readable No
Response Time(Typ) No
Contrast Ratio(Typ) No
Colors No
Viewing Direction 6:00
Viewing Angle Range No
Brightness(Typ) No
Backlight Color Yellow Green Color
Backlight Current (Typ) 15mA
Power Supply(Typ) 3.3V, 5V
Supply Current for LCM(Max) 1500uA (Vdd=5V),1250uA (Vdd=3.3V)
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃



Write a review

Please login or register to review

1602A 16x2 Karakter LCD Yeşil

  • Brand: OEM
  • Product Code: 1602A Yeşil
  • Availability: In Stock
  • Fiyat : 13.00TL
  • KDV Dahil : 15.34TL

Tags: 1602A, 16x2, Karakter, LCD, Yeşil
